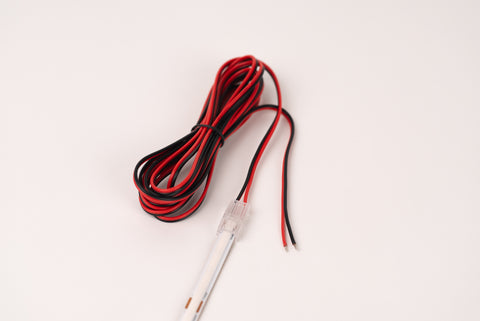

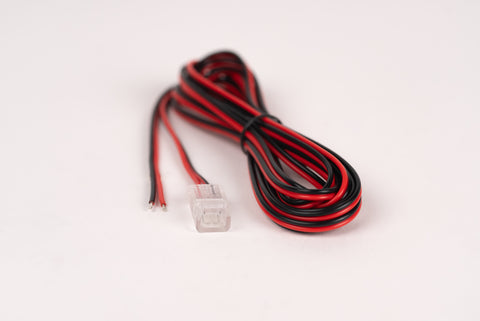

IP20 Live end with 3 metre cable

£3.00
Tax included.

Power your LED strip straight from the driver with no soldering required. The Arcova live end clips onto the start of your strip and feeds it through a generous 3-metre lead - giving you the slack to site your driver out of sight in a cupboard, ceiling void or adjacent room while keeping the run itself clean and uninterrupted.

The solderless clip grips the strip's contact pads directly for a secure, reliable feed, while the pre-prepared cable ends terminate quickly into your driver or power supply. A simple, fast way to energise a run - fit it, wire it, done.

Compatible with Arcova's Aura SOB IP40 LED Strip.

📄 Download Datasheet (PDF)

3-metre cable for flexible driver placement
Solderless, tool-free clip - no heat, flux or cold joints
Secure sprung contacts grip the strip's copper pads
Pre-prepared cable ends ready to terminate into your driver
Low-profile clear housing sits discreetly in profile or behind diffuser

Specifications

Type: Single-feed live end (strip-to-driver)
Cable length: 3 metres
Cable: 2-core x 0.5mm²
Wire termination: Tinned bare ends
Compatibility: 8mm single-colour LED strip
Pin configuration: 2-pin, single colour
Voltage: 12–24V DC
Max current: 3A (do not exceed 3A total load through a single live end)
IP rating: IP20 (indoor / dry use only)
Housing: Clear polycarbonate
